USING MYSQL IN DEVELOPMENT

These steps pertain to JumpStart 4.12.2 and later.
They enable you to develop and test in Eclipse using a MySQL database instead of HSQLDB.
They assume you have installed a MySQL database server. JumpStart has been tested with MySQL Community Server 5.1.40.

1. Create database and user.
   Using MySQL Workbench, MySQL Query Browser, or your preferred SQL tool:
   • Log in as user root.
   • If the database is on the same machine as your development environment, then execute the following statements. Otherwise, execute the statements with your development machine's IP address instead of localhost:
     • CREATE DATABASE IF NOT EXISTS jumpstart_dev;
     • CREATE USER 'jumpstart'@'localhost' IDENTIFIED BY 'jumpstart';
     • GRANT ALL PRIVILEGES ON jumpstart_dev.* TO 'jumpstart'@'localhost';
     • FLUSH PRIVILEGES;
2. Get the MySQL database driver.
   • Edit business/build.xml, uncommenting references to mysql-connector-java-5.1.10.jar.
   • Using the project's build.xml, run the Ant target get-dependent-files.
   • Refresh the project.
   • Check that mysql-connector-java-5.1.10.jar is now in business/src/main/lib-runtime/.
3. Modify the collapser to copy the right persistence.xml.
   • Edit the file collapser.xml, commenting out the line that copies openejb-hibernate-hsqldb-persistence.xml and un-commenting the line that copies openejb-hibernate-mysql-persistence.xml.
4. Modify the openejb datasource configuration.
   • Edit the file business/src/test/conf/openejb.xml, commenting out the Resource sections involving HSQLDB and un-commenting the Resource sections involving MySQL.
   • Also modify the values of JdbcUrl, UserName, and Password to suit your MySQL database.
5. Modify the business MANIFEST.MF.
   This step is not needed for the development environment, but it's worth doing now - it is needed later if you build an EAR file for an application server.
   • Edit the file business/src/main/resources/META-INF/MANIFEST.MF, adding ./lib/mysql-connector-java-5.1.10.jar to the Class-Path line.
6. Clean the project.
   • In Eclipse, choose Project > Clean. . . > jumpstart.

You now have the following environment available to Eclipse:

Web Server	Business Server	Persistence	Database Server	Logger
Jetty	OpenEJB	Hibernate	MySQL	Log4j
(As a user library)	(As a user library)	(As jars in project)	(Provided by you)	(As jars in project)

• Start Jetty. In Eclipse...

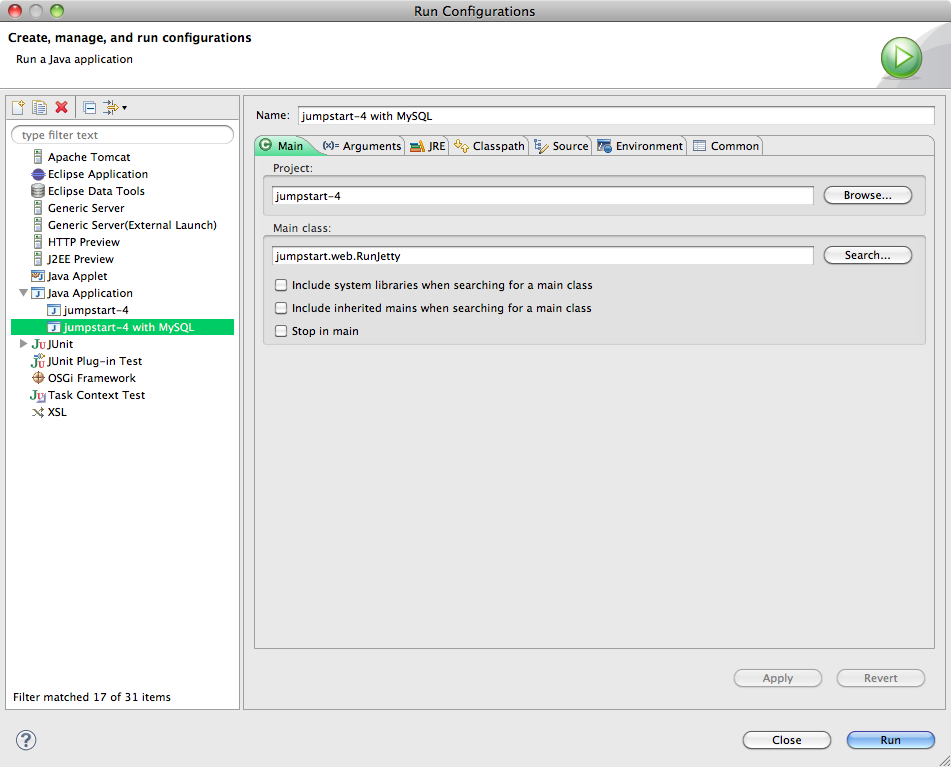

  Choose Run > Run Configurations.... The Run Configurations window will appear. Right-click on Java Application and choose New. Set the variables to values similar to those shown in the screen shot.

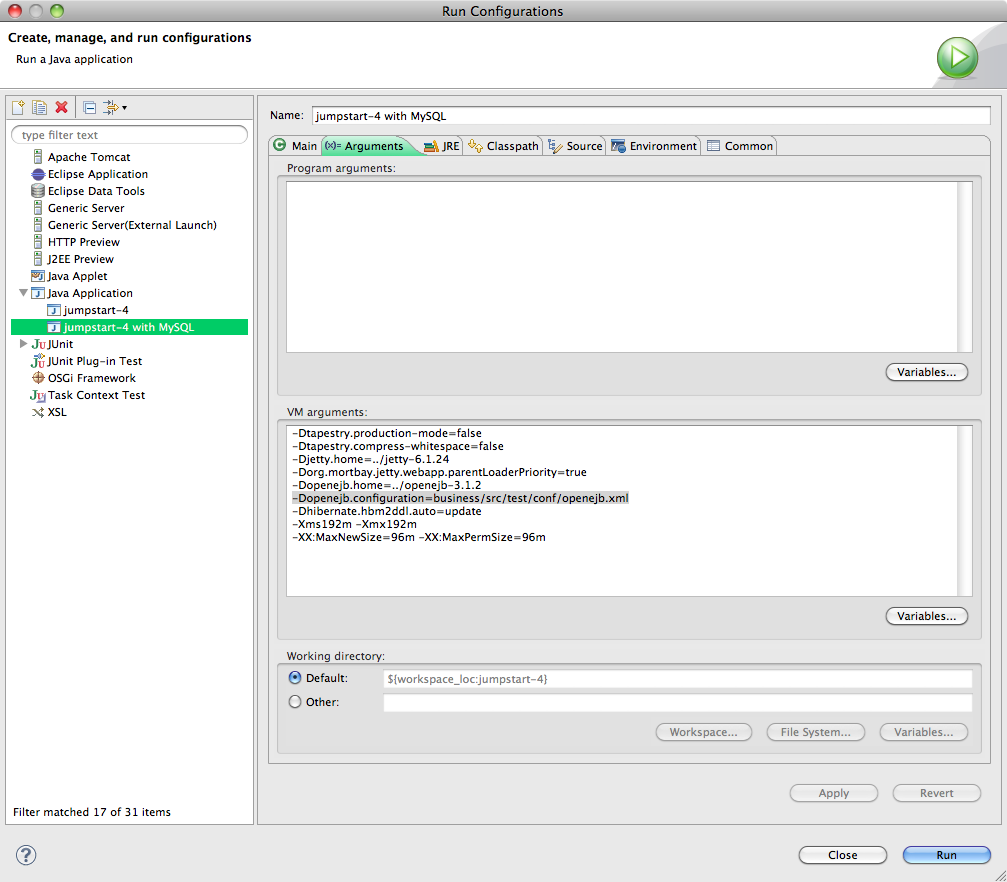

  Click on the Arguments tab. Set the VM arguments to the following, replacing the value of openejb.home with yours, eg.: -Dtapestry.production-mode=false -Dtapestry.compress-whitespace=false -Djetty.home=../jetty-6.1.24 -Dorg.mortbay.jetty.webapp.parentLoaderPriority=true -Dopenejb.home=../openejb-3.1.2 -Dopenejb.configuration=business/src/test/conf/openejb.xml -Dhibernate.hbm2ddl.auto=update -Xms192m -Xmx192m -XX:MaxNewSize=96m -XX:MaxPermSize=96m These properties are explained here: tapestry, jetty, openejb, hibernate, JVM.

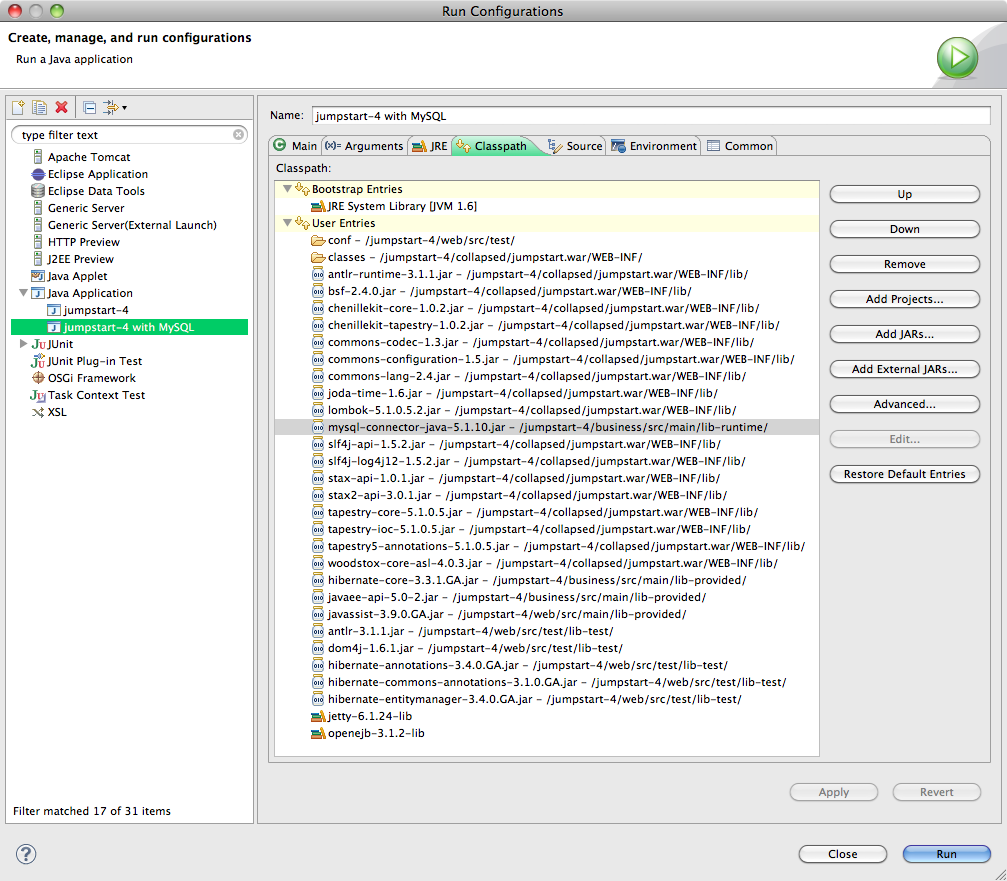

  We have to "spell out" the classpath to jetty to avoid classloader issues. Click on the Classpath tab. Remove the (default classpath) entry. Click on User Entries. Add folder web/src/test/conf . Add folder collapsed/jumpstart.war/WEB-INF/classes/ . Add all JARs from these folders: collapsed/jumpstart.war/WEB-INF/lib/ business/src/main/lib-provided/ web/src/main/lib-provided/ web/src/test/lib-test/ Add user library jetty-6.1.24-lib . Add user library openejb-3.1.2-lib . Remove these JARs because they are also in the user library: jetty-6.1.24.jar - /jumpstart-n/web/src/main/lib-test/ jetty-util-6.1.24.jar - /jumpstart-n/web/src/main/lib-test Remove these JARS because they are duplicates: javaee-api-n.n-n.jar - /jumpstart-n/web/src/main/lib-provided/ joda-time-n.n.jar - /jumpstart-n/web/src/main/lib-provided/ slf4j-api-n.n-n.jar - /jumpstart-n/web/src/main/lib-provided/ Move the two folders to the top. It avoids conflicts.

  • Click Run.
• If error, especially ClassNotFoundException for org.slf4j.Logger or org.slf4j.impl.StaticLoggerBinder, check the Arguments and classpath match those shown above.
• Check JumpStart is running by pointing your web browser at http://localhost:8080/jumpstart.
• Populate the MySQL database:
  Using MySQL Workbench, MySQL Query Browser, or your preferred SQL tool:
  • Log in as user root or jumpstart.
  • Connect to database schema jumpstart_dev if you haven't already done so, eg. with this statement: USE DATABASE jumpstart_dev;.
  • Run the script business/src/test/data/initial_data.sql (you may prefer to open the script in Eclipse and copy and paste it into the tool).
• Confirm you can log in by going to http://localhost:8080/jumpstart/theapp/login and logging in as secofr with password secofr.
  There are another 2 users: admin and john, with passwords admin and john, respectively.
• That's it!
